3-in-1 Soil Sensor Solution: WES Integrated Soil Monitoring System

Core Advantages of the Solution

1.All-in-One Integrated Sensing for Comprehensive Data Coverage

The WE-T214 integrates three key soil parameters into a single device, eliminating the need for separate deployment of multiple sensors and complex wiring to enable "one-stop" monitoring:

• Soil Temperature: Monitors the thermal state of the soil, which affects seed germination, root growth, and microbial activity—serving as a foundational environmental indicator for crop growth.

• Soil Moisture: Reflects soil water content to guide rational irrigation, avoiding water waste or drought stress on crops.

• Soil Electrical Conductivity (EC): Indicates soil salt and nutrient levels, preventing soil salinization and ensuring balanced nutrient supply for crops.

2.High-Precision Measurement for Reliable Data

Powered by advanced calibration technology and high-quality components, the transmitter delivers exceptional measurement accuracy, laying a solid foundation for data-driven decision-making:

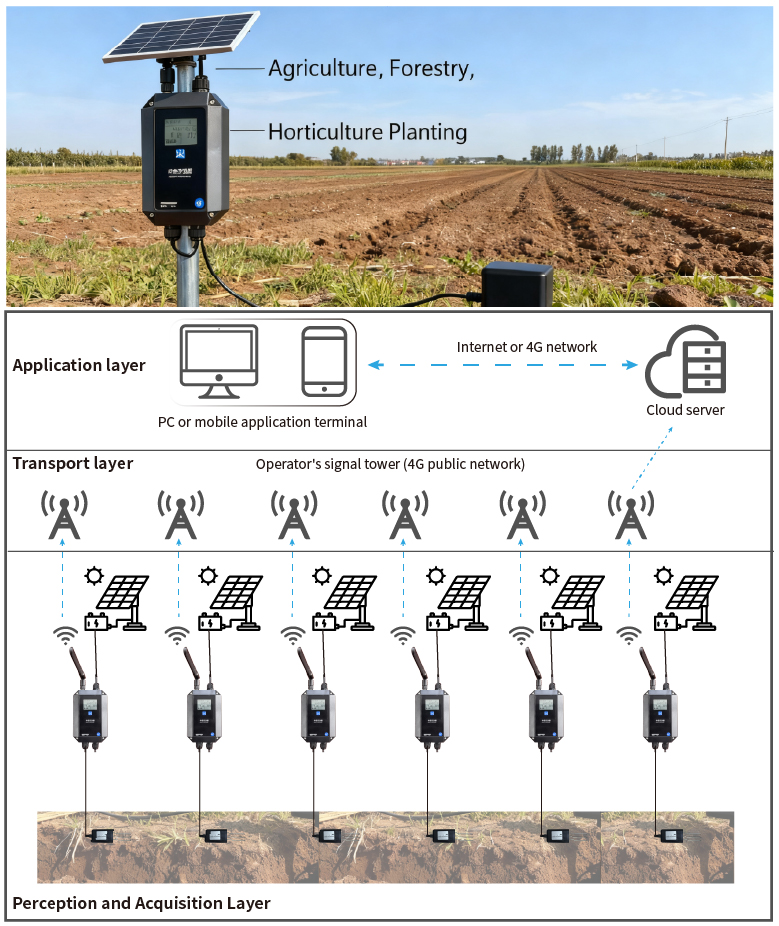

3.Multiple Communication Modes for Flexible Deployment

The solution supports multiple communication technologies to adapt to different application scenarios, ensuring stable operation whether in remote rural areas or complex industrial environments:

       LoRa Communication: Long-distance transmission (up to 5km in open areas) with low power consumption, ideal for large-scale farmland or forestry monitoring. It supports the 410.125~490.125MHz frequency band, with a maximum transmit power of 22dBm and a maximum receive                           sensitivity of -147dBm.

• 4G Communication: High-speed data transmission with 3 years of data traffic (100MB/month). It supports LTE FDD (B1/3/5/8) and LTE TDD (full B34/38/39/40/41 bands), suitable for scenarios requiring real-time data upload.

• NB-IoT Communication: Ultra-low power consumption and stable connectivity with 5 years of data traffic (300MB/year). It supports LTE Cat NB2 (B3/B5/B8), perfect for long-term, low-frequency monitoring in remote areas.

4.Dual Power Supply for Uninterrupted Operation

The transmitter offers two power supply options to meet the needs of different power conditions:

       Battery Power: Equipped with a 19000mAh lithium battery. Battery life varies by communication mode and reporting interval: LoRa (8~10 years @ 1 report/hour), NB-IoT (4~6 years @ 1 report/hour), 4G (2~3 years @ 1 report/hour).

• DC Power: Supports 9~30VDC (typically 24VDC), enabling continuous operation in industrial sites or areas with stable power supply.

5.Robust Design for Harsh Environments

         IP Rating: The transmitter host has an IP67 rating, and the probe has an IP68 rating, ensuring dustproof and waterproof performance to adapt to rainy, humid, or dusty outdoor environments.

• Durable Materials: The host shell is made of ABS/PC, and the probe shell is made of epoxy resin and 316L stainless steel—corrosion-resistant and wear-resistant to extend the device’s service life.

• Wide Operating Temperature Range: The host operates at -20~70°C, and the probe operates at -40~85°C, suitable for most climate zones.

Application Scenarios

The WE-T214 3-in-1 Soil Sensor Transmitter is widely applicable to various scenarios requiring soil parameter monitoring:

       Smart Agriculture: Monitor soil moisture and nutrients in farmland to implement precision irrigation and variable-rate fertilization, improving crop yield and quality.

• Forestry Monitoring: Track soil temperature and moisture in forests to assess tree growth conditions and prevent forest fires and pests.

• Horticulture: Manage soil conditions in greenhouses and gardens to create optimal growing environments for flowers, vegetables, and fruits.

• Environmental Monitoring: Monitor soil conductivity in ecological restoration areas to prevent soil salinization and protect the ecological environment.

Installation & Deployment

The system adopts a split design (host + probe) for fast and flexible deployment:

       Probe Installation: Insert the 3-prong probe into the soil (depth matching the crop root zone), ensuring tight contact with the soil (no air gaps).

1. Host Mounting: Fix the host on a pole or wall (in a well-ventilated, dry location) to avoid direct sunlight and rain exposure.

2. Data Access: Connect to the cloud platform via wireless communication to start monitoring immediately.

Solution Summary

The WES 3-in-1 Soil Sensor System is a cost-effective, high-performance solution for modern soil management. It transforms scattered manual soil testing into automated, data-driven insights, helping users reduce costs, improve efficiency, and achieve sustainable production.

For quotes or technical details, please contact our sales team!
