Application of ZigBee+GPS Positioning in Personnel and Asset Management in Mobile Scenarios

I. System Background

Logistics transportation and tour group travel share several key characteristics: first, a large number of assets/personnel are involved; second, they are mostly in a mobile state. This makes it difficult to achieve PTZ surveillance and historical trajectory tracing.
By utilizing West-HN Technology's ZigBee positioning GPS devices, this problem is easily solved. As long as tags are within approximately 50 meters of a mobile gateway, personnel can be counted in real-time. Inventory checks can instantly identify which team member/item has left a specific location, facilitating quick retrieval in the vicinity.

II. System Advantages

• Rapid Personnel Binding
  • Upon joining the tour, the tour leader distributes tags with basic tourist information. These are then quickly bound to the group via the APP software, streamlining subsequent statistical tracking and management.
• Real-time Query
  • The tour leader can perform real-time headcounts during the tour to immediately identify if any team members have fallen behind. If someone is missing, they can be located in the shortest possible time.
  • The mobile gateway reports GPS data and tag distance information to the cloud in real-time, enabling quick tracing of the last known location of a missing person/lost item. During cold chain transportation, movement trajectories and temperature status can also be reported in real-time.
• Tag Recycling & Reuse
  • After the tour concludes, the tour leader can collect the tags from team members, unbind the personnel information in the software system, and prepare them for the next binding application.

III. Solution

• Each person/item carries an electronic tag.
• The tour leader/transport vehicle carries a mobile portable device. Personnel/item information is entered into the system software and bound to the tags.
• The tour leader/backend can perform headcounts as needed to check if all personnel/items are present or if anyone/anything is missing.
• If the tour leader/backend cannot read a specific team member's/item's tag during a headcount, it indicates that person/item is beyond the 50-meter range of the gateway, triggering a trace and search.
• Geofencing can be set up to trigger alarms when the predefined area is exited.

IV. Interface Schematic

^{Historical Trajectory Query}

^{Temperature Information Query}

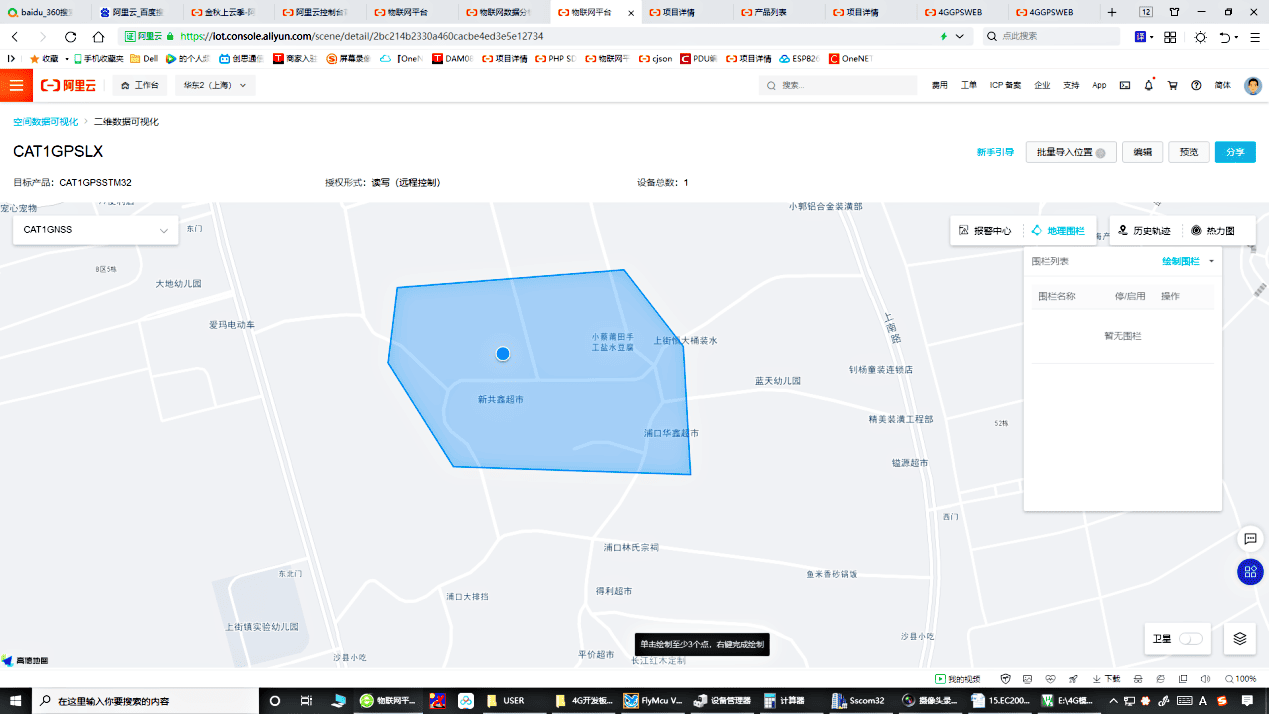

^Geofencing

V. Hardware Products

◭ Mobile Gateway

• A single reader can manage up to 1000 items.
• Supports 32 categories; one item can belong to multiple categories.
• Can store inbound/outbound and item operation logs for at least one year.
• Supports 1D barcode and QR code scanners for item query, outbound, and inbound operations.
• Can simultaneously call up to 80 tags (with audible/visual alerts) over a distance of 50 meters.
• Standard 5400mAH rechargeable lithium battery supports continuous operation for over 8 hours.
• Bluetooth wireless transmission power of 8dBm, with a range of up to 30 meters.
• Type-C charging port for convenient mobile charging.
• Free PC software for daily warehouse operations and mobile APP for finding items, offering convenience and speed.

◮ Personnel & Asset Positioning Management Tags WE-T32K, WE-T32S

VI. Hainan West-HN Technology

Hainan West-HN Technology Co., Ltd. envisions "Making Standardization in Industrial IoT Simpler". Focusing on the IoT industry chain, we continuously invest in R&D for indoor positioning, sensor control, and data transmission products. We adopt a "Lego-like" production approach to precisely meet the small-batch, high-variety demands of industrial IoT products. We provide solutions for complex environments and personalized needs, truly achieving a new supply-demand relationship characterized by low inventory and high satisfaction.

The company has R&D centers in Shanghai, Suzhou, Chengdu, and Taipei. Building upon the group's nearly 40 years of strong business resources and reputation, we adhere to the business philosophy of "Being Experts in the Industry". We excel in channels, are sensitive to the market, and focus on products. Our R&D ensures reliability, production ensures stability, and sales ensure quality. We are consistently dedicated to the ultimate satisfaction of personalized scenario requirements for industrial IoT clients.

Regarding products, we offer both Zigbee positioning products developed by our in-house team over more than a decade, and UWB positioning products developed by our Shanghai and Taipei teams, meeting diverse client needs for positioning accuracy. Additionally, the company introduces Bluetooth positioning products to complement our self-developed solutions, providing comprehensive coverage for various client requirements.

In terms of software support, we integrate solutions across industries, actively open interfaces and source code for system integrators, and facilitate case demonstrations for related software companies based on our products. This broadens the application of IoT indoor positioning.
