WE-GT085 Smart Animal Tracking Terminal
A global version 4G/LoRa/GPS positioning terminal designed for precision livestock management. Features a 20,000mAh battery with solar charging, dual-connectivity backhaul, and advanced boundary training tools.
Global Version. For technical support or volume pricing, email us from Contact Information.
Key Highlights
Intelligent herd management with global connectivity and sustainable power.
Dual 4G & LoRaWAN
Reliable global connectivity with LoRa (long range) and 4G (high bandwidth) for continuous asset tracking across remote terrains.

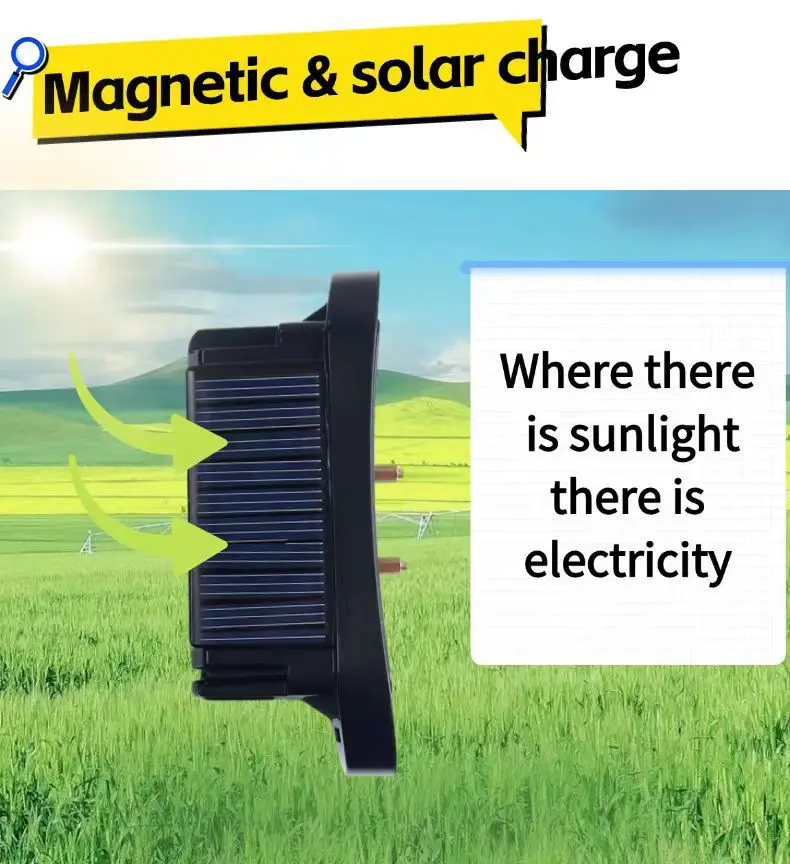

Ultra-Long Endurance
Built-in 20,000mAh polymer battery combined with high-efficiency solar charging for months of maintenance-free operation.
Precise Multi-Mode Positioning
Integrated GPS, Beidou, LoRa, Base Station, and WiFi (optional) for reliable location data from centimeter to meter accuracy.
Advanced Boundary Training
Smart fence management with warning buzzers, light prompts, and adjustable electrostatic shock to ensure herd safety and prevent loss.
Industrial Ruggedness
Engineered for harsh outdoor environments, supporting operating temperatures from -25°C to +80°C with IP-rated protection.

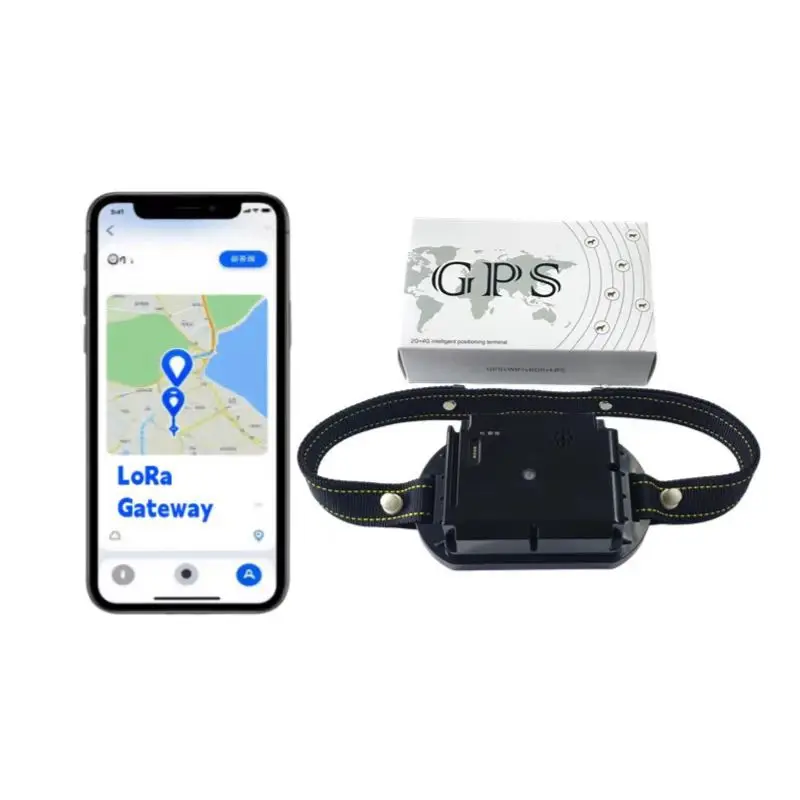

Real-Time App Monitoring
View live locations, fence alerts, and battery status directly via a dedicated mobile dashboard or integrated cloud platform.
Product Gallery
Visualizing the WE-GT085 in the field and its core features.
Product Video
Quick look at the WE-GT085 Smart Animal Tracking Terminal in action.

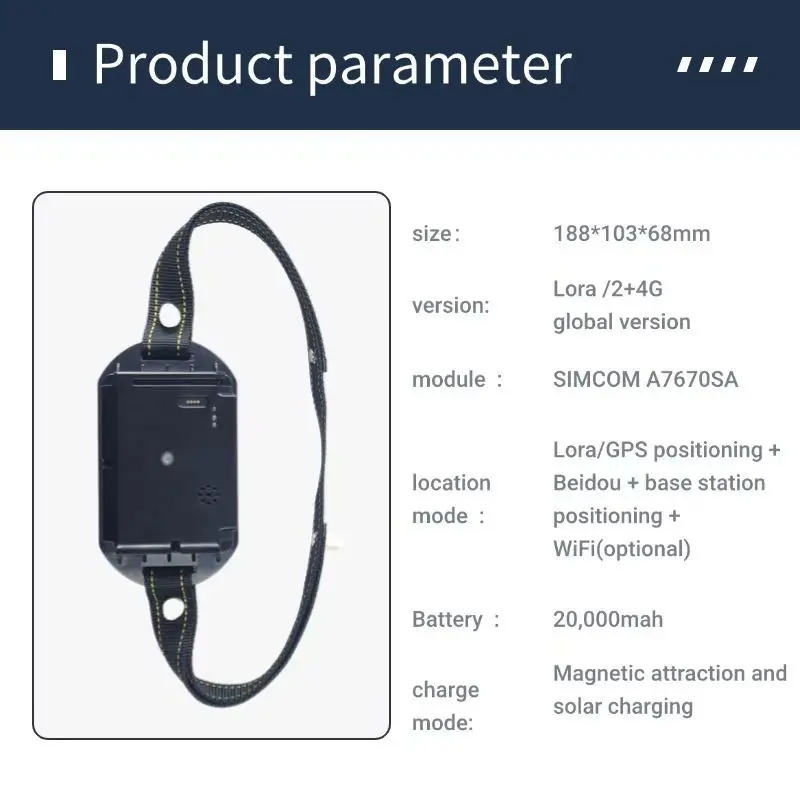

Specifications
Technical parameters for the WE-GT085 Global Version Positioning Terminal.
| Hardware Platform | 4G Cat 1 / 1603 (SIMCOM A7670SA-LASE) |
|---|---|
| Network Bands | LTE-FDD: B1/B2/B3/B4/B5/B7/B8/B28/B66; GSM/2G: 850/900/1800/1900MHz |
| Positioning Modes | LoRa / GPS / Beidou / Base Station / WiFi (optional) |
| Positioning Accuracy | GPS < 10m; Base Station < 100m |
| Sensitivity | Acquisition: -143dB; Tracking: -159dB |
| Battery & Charging | 20,000mAh Polymer Battery + High-Efficiency Solar Charging + Magnetic Charging |
| Battery Life | 3 to 6 months (Depending on reporting frequency) |
| Operating Temperature | -25°C to +80°C |
| Host Dimensions | 125 x 73 x 25.7 mm |
| Total Weight | Approx. 500g |
Typical Applications
Optimized for large-scale livestock tracking and pasture management.
Livestock Management
Automated real-time tracking for cattle and sheep in open pastures, remote hilly areas, or large plantations where traditional network coverage is limited.
Herd Safety & Training
Anti-theft and escape prevention using virtual fence boundaries. Integrated audio and stimulation tools help train animals to stay within designated safe zones.
Standard Package
Standard configuration for the WE-GT085 Global Version.
| # | Item | Qty |
|---|---|---|
| 1 | Smart Animal Tracking Terminal (WE-GT085 Host) | 1 |
| 2 | Industrial Grade Reinforced Collar Strap | 1 |
| 3 | Magnetic Charging Cable | 1 |
| 4 | User Manual & Quality Certificate | 1 |
Downloads
Access technical documentation for the WE-GT085.
